Alerts Map

Alerts Map presents you with a visual representation of each alert status in real-time. Grouping all of your alerts in a scalable, information-dense manner, this feature ensures optimal system monitoring.

Use Alerts Map to visualize the following:

• Standard Alerts (for all alert conditions except notify immediately)

• Ratio Alerts

• Metric Alerts

• Time Relative Alerts

• Flow Alerts

Access Alerts Map

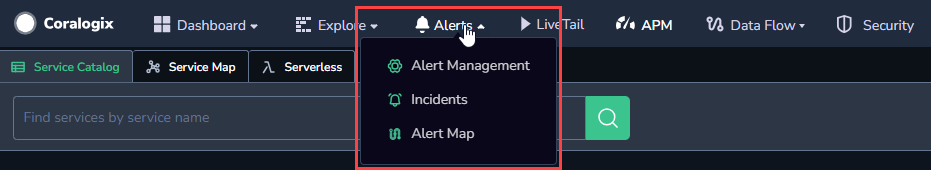

To access Alerts Map, navigate to Alerts, then Alerts Map.

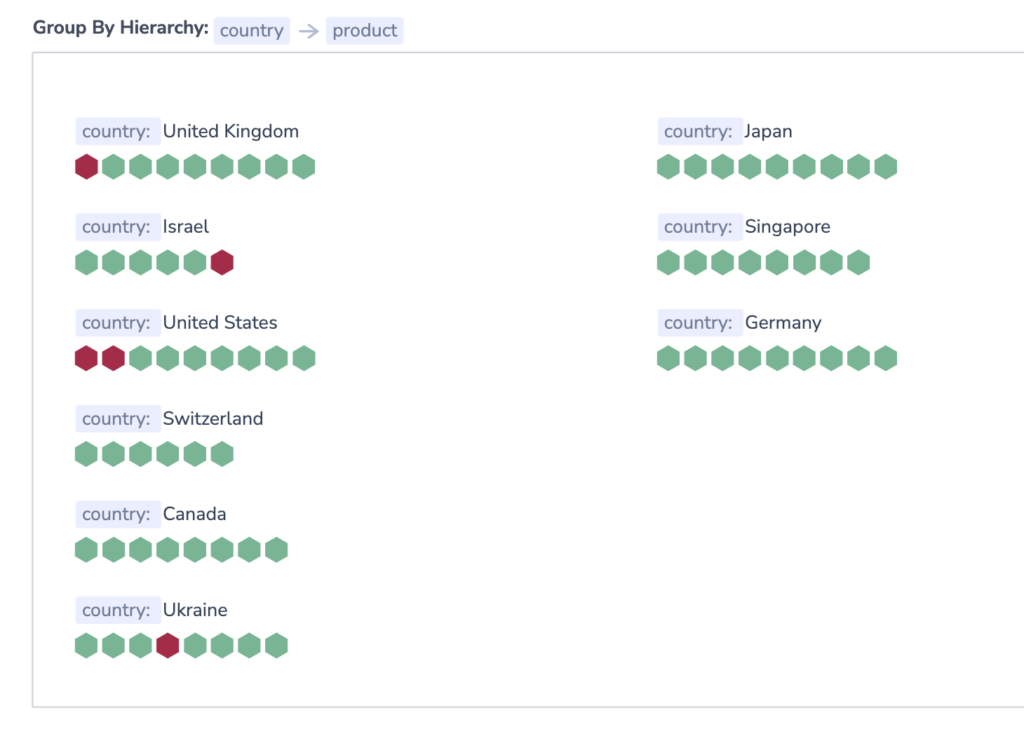

Alerts Map visualization

View triggered alerts

Alerts Map is divided into different visualizations based on the field or fields you have grouped by in your alerts. Red hexagons represent values per key that have resulted in a triggered alert. Green hexagons represent all other conditions.

• Hexagon color is updated at intervals defined by value:time-range in the alert definition itself:

  • Every 2 min: When the less than\more than condition is under 30min

  • Every 6 min: When the less than\more than condition is between 30min to 12hrs

  • Every 12 min: When the less than\more than condition is bigger than 12hr

• To view additional information about a triggered alert, hover over a hexagon of interest. You will see a list of all the alerts that were triggered for a specific value and how many of them have been resolved.

Filter

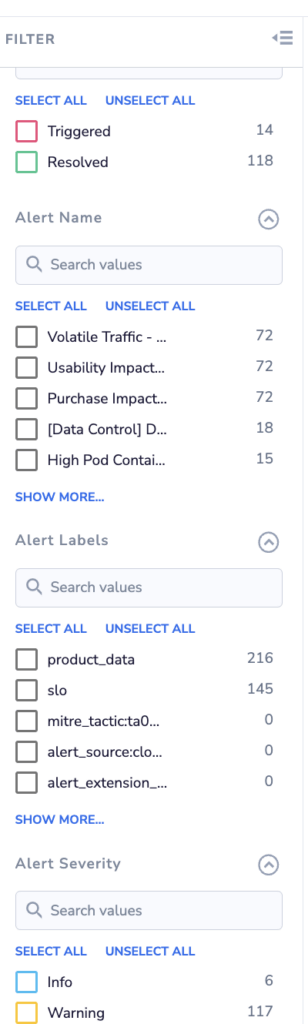

Filter Alerts Map in the left-hand sidebar. Filter by Alert status, Alert name, and Alert Severity.
